نظام كاميرا مراقبة PoE بدقة 5 ميجابكسل مع 8CH NVR و 4 كاميرات IP خارجية. يتضمن قرص صلب بسعة 2 تيرابايت للتسجيل على مدار الساعة طوال أيام الأسبوع. الموديل: RLK8-410B4-5 ميجابكسل.

Q&A Time:

Question 1: Can I add a different camera to this system?
Answer: Yes. You can add any Reolink PoE cameras and DC-powered WiFi cameras to the system. However, we don’t recommend you add third-party cameras to it since there may be compatibility issues.
Question 2: Can it work without Internet?
Answer: Yes. All the Reolink PoE systems can work offline. However, under such a situation, you will unable to access the system remotely via Reolink App/Client.

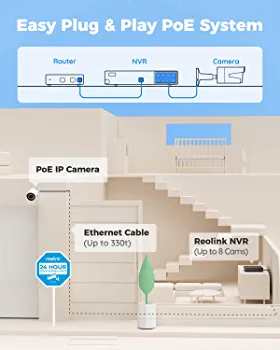

Question 3: How is the connection? Is the system truly plug & play?
Answer: Yes. PoE (Power over Ethernet ) makes the cameras be able to get power and meanwhile get into the network with only one ethernet cable connected to the NVR recorder. Set-up can be done in minutes.

Expand to Meet Your Needs

This system has 2TB HDD pre-installed and is scalable up to 12TB. Besides the 5MP cameras included, up to 12MP Reolink PoE and WiFi cameras can be added.

View and Playback in 5MP/30fps

Featuring the latest technology, the wired security camera system can record in crystal clear 5MP at 30fps, providing you with some unnoticeable details while maintaining smooth on-screen movement.

Easy to Operate

Thanks to the simple and intuitive Reolink software, the system can be accessed in multiple ways for remote control with no need of any subscription. Also, up to 19 user accounts can be created to share access.

Real-Time Motion Alerts

As dangers occur, a prompt e-mail or push will be sent to your smart devices while the NVR itself will make sound warnings and upload videos to your FTP server, allowing for your quick action when trouble arises.

Why Choosing Wired PoE System?
RLK8-410B4-5MP PoE System Specifications

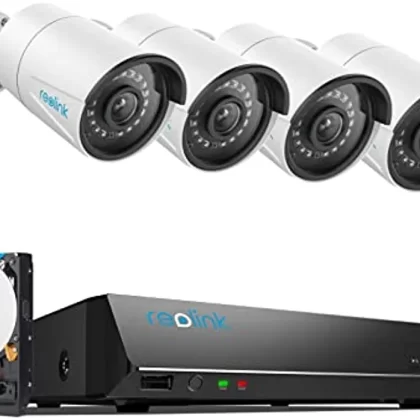

What's in the Box?

1 x 8CH NVR with 48/52V Adaptor
4 x B500 PoE Cameras
1 x USB Mouse
1 x 1M Cat5 Cable
4 x 18M Cat5 Cables
1 x 1M HDMI Cable
1 x Quick Start Guide
4 x Packs of Screws and Other Accessories

Working Temperature: -10°C +45°C (14°-113° F) Viewing Angle: Horizontal: 80°, Vertical: 58°

RLN8-410 8-channel NVR Specifications

Display Resolution: Up to 5MP for this kit (depands on the resolution of cameras, up to 12MP supported)
Compression Format: H.264
Power over Ethernet Sockets: IEEE 802.3 af/at
Power Supply: DC 48V/2A, or DC 52V/2.88A

B500 5MP Camera Specifications

Image Sensor: 1/2.7" 5MP CMOS (2560 × 1920)
Lens: f=4.0 mm Fixed, F=2.0
Night Vision: Black & White by IR LED
Audio: One-way Audio (only audio recording)

Reolink Systems only work with Reolink Cameras(up to 12MP).
Kit cameras of the system cannot work without the NVR and don't support Smart Home function.

RLK8-520D4-5MP RLK8-800B4 RLK8-800D4 RLK16-810B8-A RLC-510A RLC-810A
Channel 8 Channels 8 Channels 8 Channels 16 Channels / /
HDD Pre-installed 2TB 2TB 2TB 3TB / /
HDD Capacity 6TB max Each, 12TB Total 6TB max Each, 12TB Total 6TB max Each, 12TB Total 6TB max Each, 12TB Total / /
Ports for HDD SATA*1, e-SATA*1 SATA*1, e-SATA*1 SATA*1, e-SATA*1 SATA*2 / /
Camera Supported Reolink PoE & Plug-in WIFI Cameras Reolink PoE & Plug-in WIFI Cameras Reolink PoE & Plug-in WIFI Cameras Reolink PoE & Plug-in WIFI Cameras / /
Human/Vehicle Detection ✓ ✓ ✓ ✓ ✓ ✓
Remote Access ✓ ✓ ✓ ✓ ✓ ✓
Easy PoE Installation ✓ ✓ ✓ ✓ ✓ ✓
Reolink App/Client ✓ ✓ ✓ ✓ ✓ ✓
