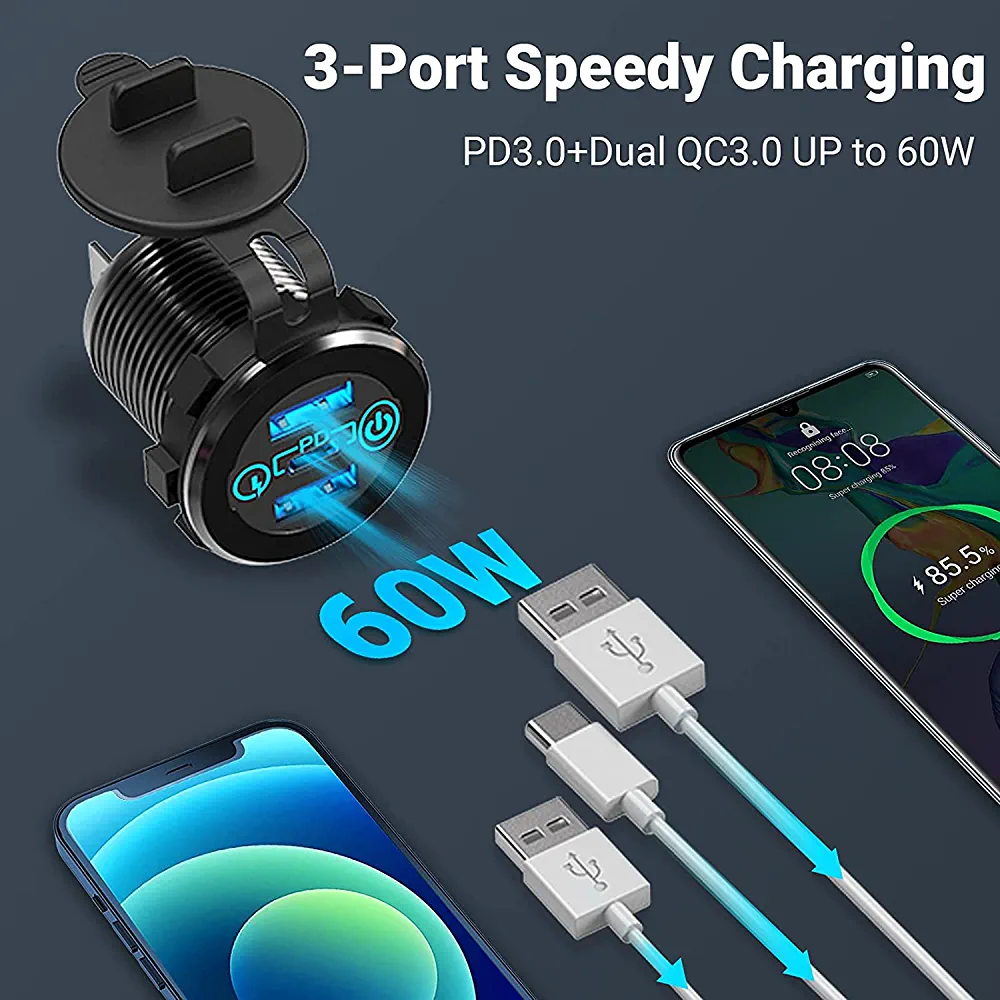

Triple USB Outlet

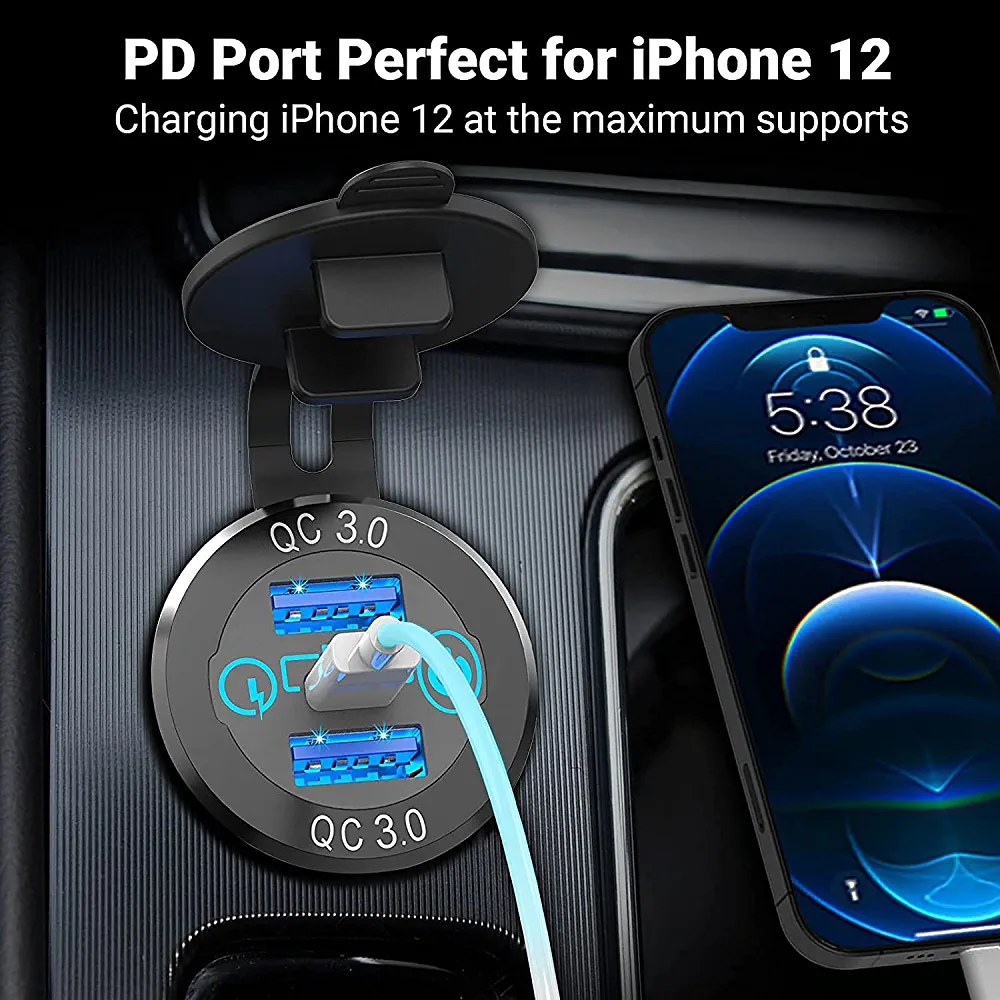

USB-C Power Delivery 3.0
PD3.0 USB-C port deliver 20W-30W power for iPhone 13/12/Mini/Pro/Pro Max/11/Pro/Max, iPhone X/XS/XR/8/8 Plus/SE, iPad, AirPods, Galaxy S22 /S21 /S20+ /S20/S10+/S9+/S8+. PD3.0 is compatible with QC4.0, QC3.0 and QC2.0 of Qualcomm.
Note: For 24V car, the charging power can reach 30W. For 12V car, the charging power can only reach 20W.

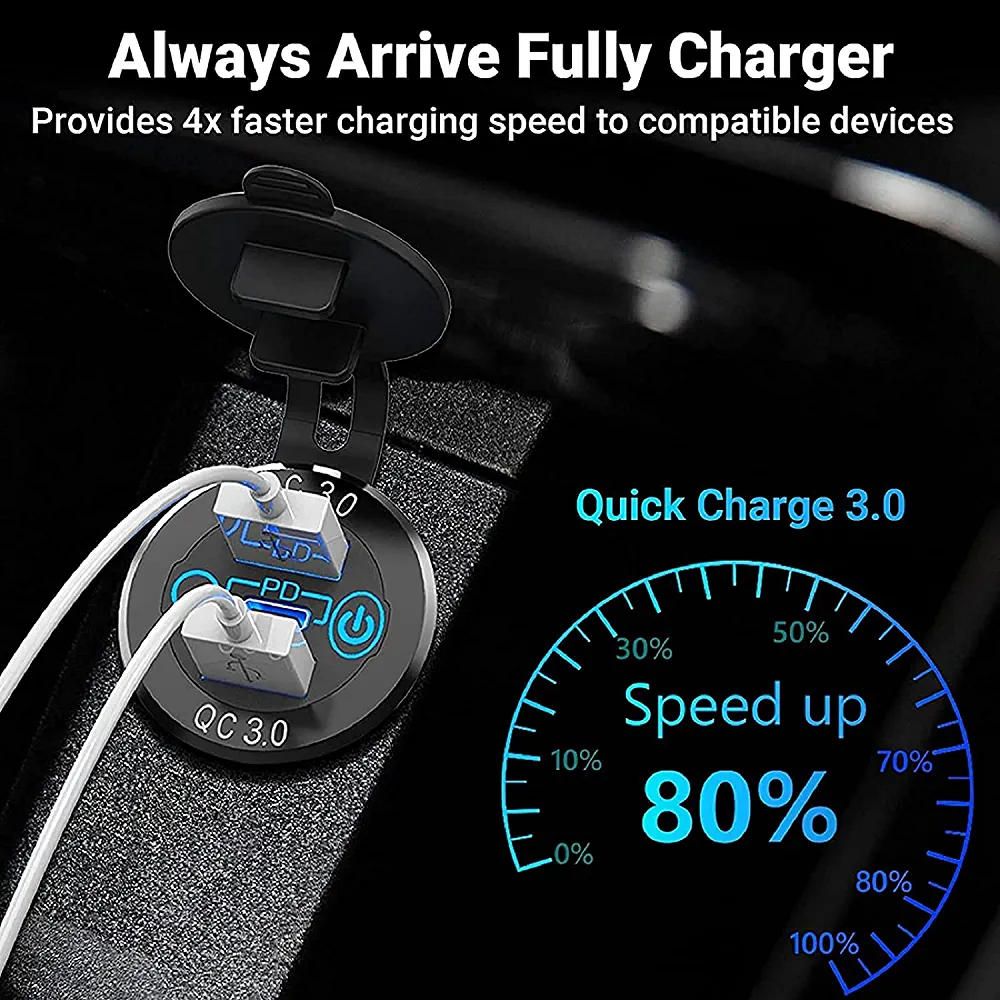

USB-A Quick Charge 3.0
QC3.0 Port max output 18W. Provides 4x faster charging speed to compatible devices, and deliver the fastest possible charge to all non-quick charge device.
When two QC3.0 ports are charged simultaneously, one of the QC3.0 port will automatically slows down to normal charging speed (2.4A).
Except for USB-C port, it always keep fast charging speed.

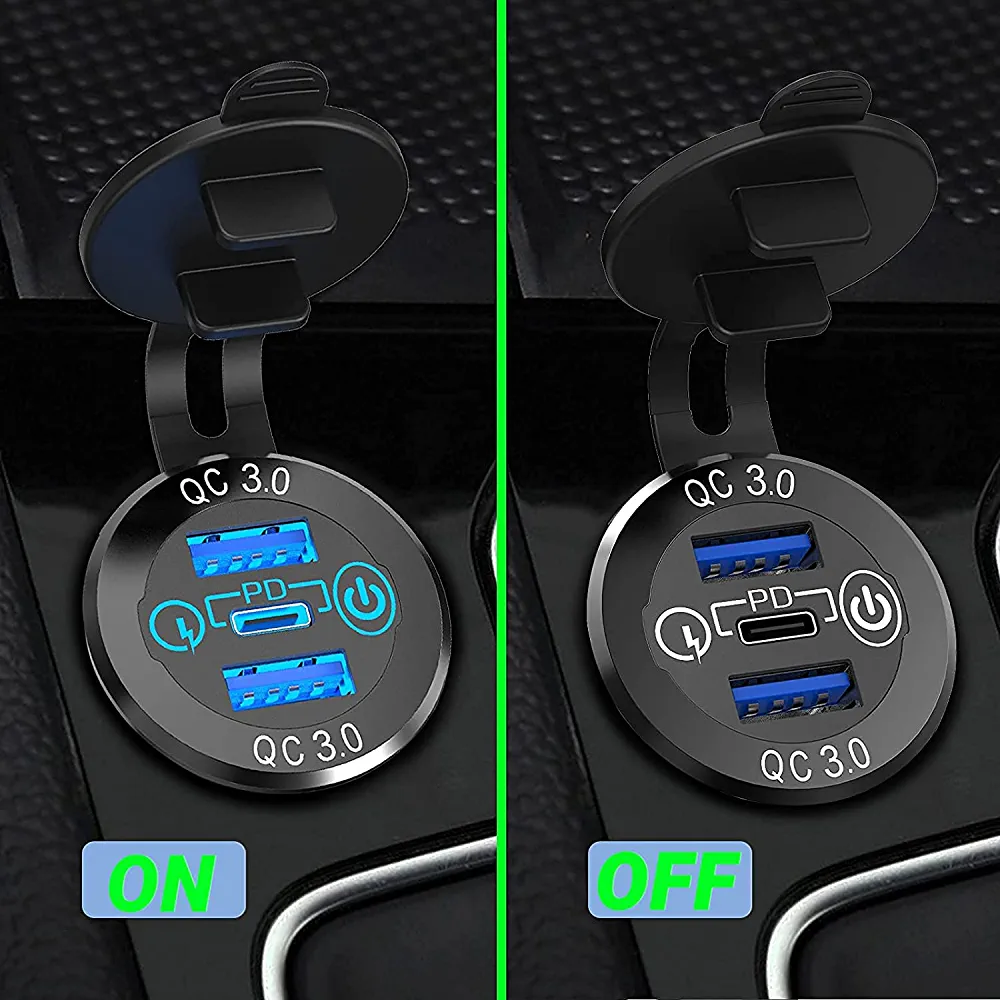

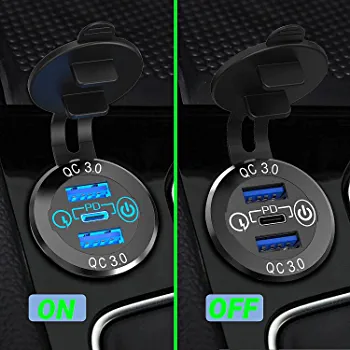

ON/OFF
Touch Power Switch
Designed with a touch switch saves energy and extends the life of your product and equipment.
And the switch has a memory function, which can remember the ON/OFF state of the switch before it was turned off last time.
Superior Safety Performance
Built-in Smart IC, outputs stable current without fluctuation. Protect your devices from overload, over-current and Short Circuit.

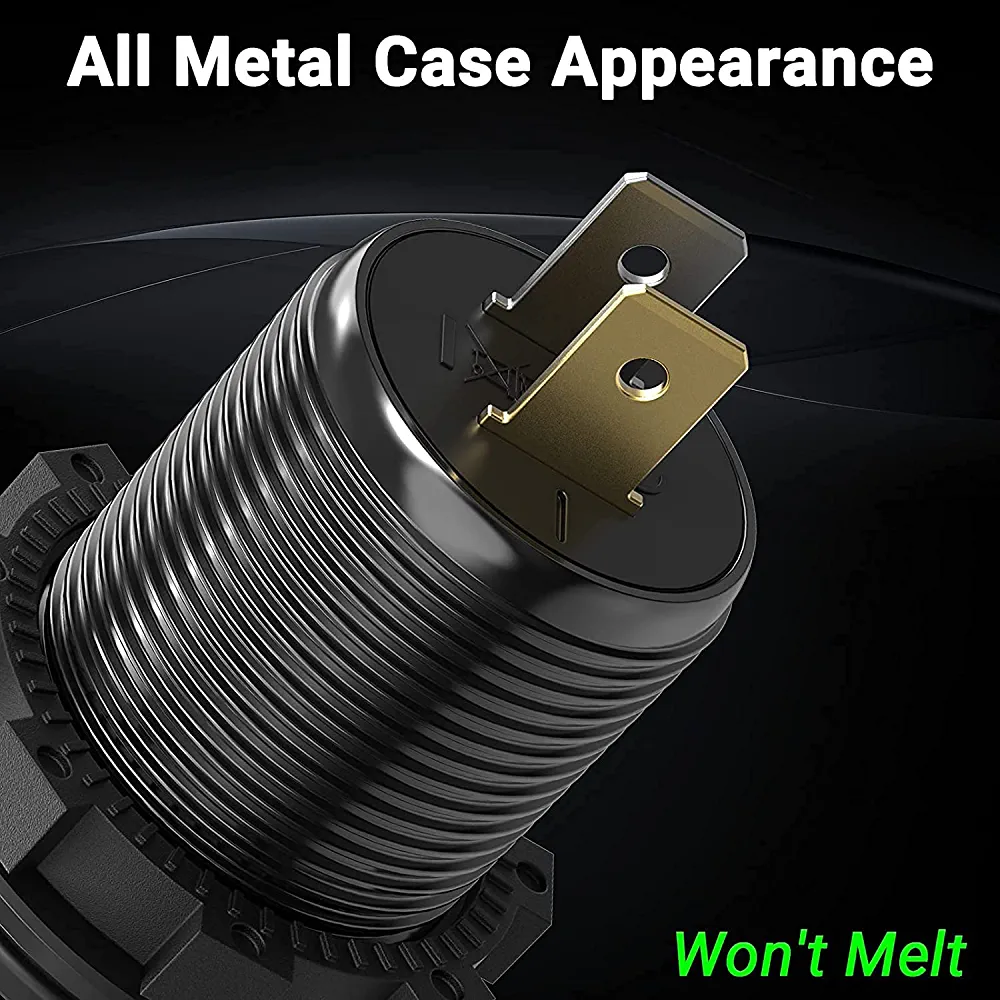

All Metal Body
Made of advanced aluminum alloy material, which is sturdier than traditional plastic models, with better texture and better high temperature resistance, so it is safer than plastic chargers.
NOTE:
1. At 12v, the PD port cannot charge the iPad series, but the QC3.0 port can charge it (Normal speed).
At 24V, the PD port can fast charge the iPad series, and the QC3.0 port still charge it at normal speed.
2. PD Port to fast charge for iPhone series: Need to use with USB C TO LIGHTNING cable. (Not Included)
3. PD Port to fast charge for Samsung Note 20/Galaxy S22/S21/S20+/S20/S10+/S10e, Pixel 4 XL/4/3. Need to use with USB C TO C cable. (Not Included)
4. For mobile phones that support Quick Charge 3.0, you must use the original charging cable or fast charging cable to achieve fast charging.
5. For Huawei SCP fast charging, you need to use a brand line for normal output.
6. OPPO, VIVO and ONEPLUS phones with VOOC fast charge protocol are not currently supported.
7. Don’t support charging laptops, such as Lenovo, HP, Dell, MacBook, etc.
If you encounter any problems, please let us know in time, and we will do our best to help you solve the problem. (24 hours service online)
Drill a hole with a diameter of about 3CM.
Put the sockt in the hole and screw it tightly.
Connect “+” to power positive pole, “-” to negative pole.
Installation successful.
About Wiring
Input voltage of this USB outlet support DC 12V to 24V, cannot be used at home as power adapter. Unless a voltage converter is used to convert household alternating current into direct current 12-24 volts.
Connect the “+” to power positive pole, and connect “-” to ground or negative pole. For vehicle, it’s better to choose power positive pole from ACC than BATT+; For motorcycle, it’s better to get power from key switch.

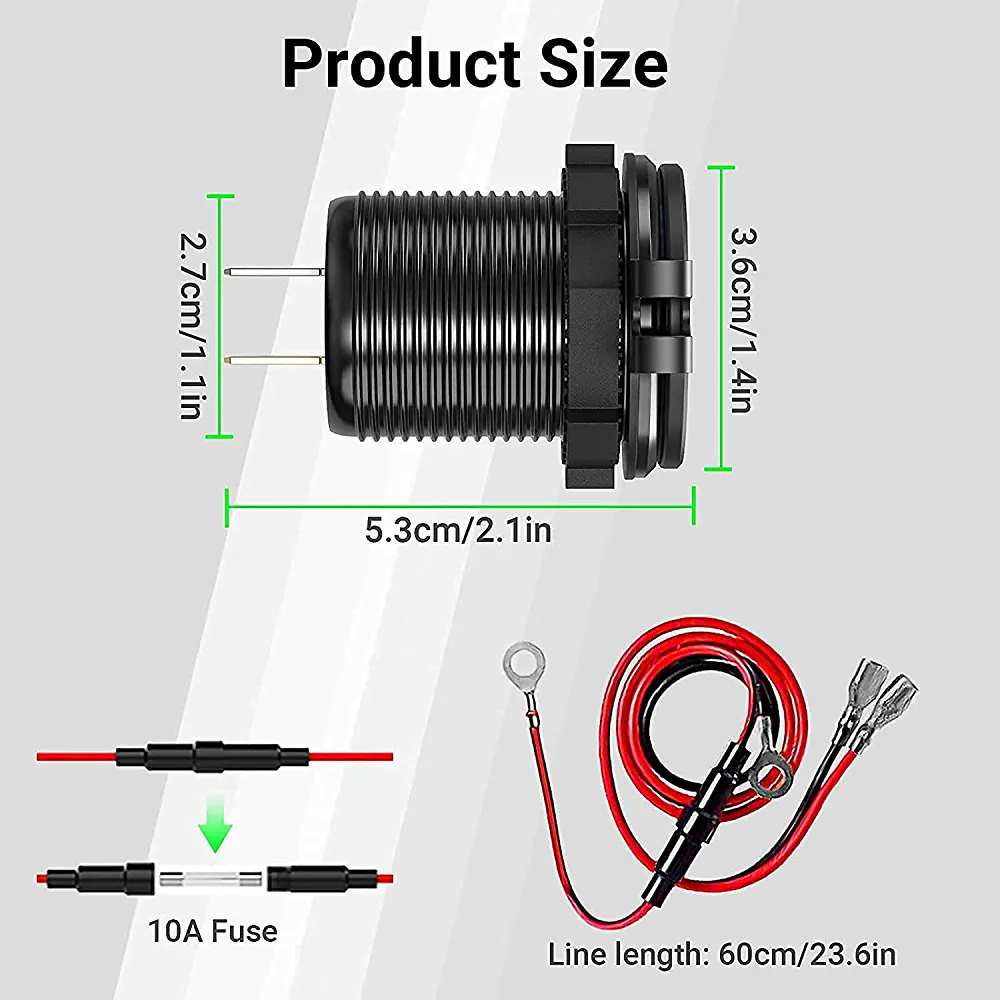

Specifications:
Input Voltage: DC12V-24V
Dual QC Port Output: 5V/3A、9V/2A、12V/1.5A (Single Max 18W, Dual Max 30W)
PD3.0 USB-C Output: 5V/3A, 9V/2A-3A,12V/1.5-2.5A, 15V(20V)/1A-1.5A (Max 20W for 12V, Max 30W for 24V cars.)
Note: (Only when the input voltage reaches 24V, the output voltage can reach 15V or 20V.)
Total Output: ≤ 60W
Safety Fuse: 10A
Material: Aluminum metal
